Category: PCB MACHINES

机体BODY 大理石marble 轴数SPINDLES 双轴 2 SPINDLES 加工范围Processing range 550*1300mm 主轴型式Spindle type 滚珠轴承Ball bearing 保修半年6 months 主轴转速Spindle speed 15,000 rpm ~ 60,000 rpm 各轴驱动系统Drive system for each spindles X、Y、Z 轴AC 伺服马达X, Y, Z axis AC servo motor 台达(松下)Delta (Panasonic) 丝杆导轨Screw guide 高精密级丝杆导轨High-precision screw guide PMI、德国PMI, Germany X、Y 轴移动速度X, Y axis moving speed 30m/min Z 轴移动速度Z axis moving speed 20m/min ATC 刀座数量Number of …

机体BODY 大理石marble 轴数SPINDLES 双Z轴Double Z axis 加工范围Processing range 630*750mm 主轴型式Spindle type 滚珠轴承Ball bearing 保修半年6 months 主轴转速Spindle speed 15,000 rpm ~ 60,000 rpm 各轴驱动系统Drive system for each spindles X、Y、Z 轴 AC 伺服马达X, Y, Z axis AC servo motor 台达(松下)Delta (Panasonic) 丝杆导轨Screw guide 高精密级研磨丝杆，台湾上银导轨High-precision screw guide,taiwan HIWIN guide 台湾银泰PMI、Taiwan PMI X、Y 轴移动速度X, Y axis moving speed 50m/min Z 轴移动速度Z axis moving speed …

1、Pramater specification: Size of machine :1950*1315*1135 L*W*H. Working height :750Weight:1.5TPower supply:3 phase 380V needs to be grounded Power:4kw Thickness of working panel:0.5-2.0(mm) Min length of working panel:150mm Size of blade :D200*d140*t16 Thickness of blade:16mm Tool speed :25R/MIN shearing speed 15m/min2、Detail specification: Motor CH40-2200-25S60L (Taiwan)2.2KW Frequency converter DELIXIBlade high steel material, NBR rubber, control electrical Omron Japan, line …

Name of Machine   Lead-free HASL machine Model of machine HAL-2426-cs Tin furnace capacity 600-650KG Material of Tin furnace SUS316L/10MM Size of panel Max:24″×26″ Min:8″×10″ Adapt to production 0.8-3.2mm Thickness of panel Gas source requirement Gas source pressure 6-7Kg/Cm2 Air consumption The air consumption of the whole machine is 1.9-3m3/min. 3-4/cubic per minute, and one cubic gas …

Product description:The exposure machine using electronic energy-saving transformers, compared with the traditional transformer exposure machine about 25% energy saving.  In the same power output, the electronic energy-saving transformer output UV intensity higher than the traditional transformer about 30%. Product Features:UVED-9000 Exposure Machine Features:1. Operation interface can be in / English switch, the use of intelligent …

Processing target ：        PCB circuit boards, double side, single side board, etc. Processing size ：           500mm × 600mm Reference standard：    round; ring; cross; split form; special-shaped target required to provide advance Processing aperture ：       0.5-4mm XY axis range ：         …

Technical parameter: 1  Model ZL-l 2  Power supply AC38OV3Φ50HZ 0.5KVA  3  Size of machine L800 × W600 × 1240mm  4  Working height 6O0mm  5  Max working area 900mm  6  Max lifting height 410mm  7  Weight 130kg  ☆  Can design according to customer requirements

1、Effective working area                          500*780mm   2、Working height                                  980mm   3、Heating、air exhaust、cooling time can set  1-40s（adjustable)   4、locking frame lift/down time                …

Product description: The lamination machine inside the drum temperature of the heating mode, the use of day OMRON ESC2 thermostats and non-contact switch (SSR) for precise control pressing wheel temperature so that the film achieve the best state. Before the film has sticky mechanism for cleaning the PCB board (optional), dry film and the board …

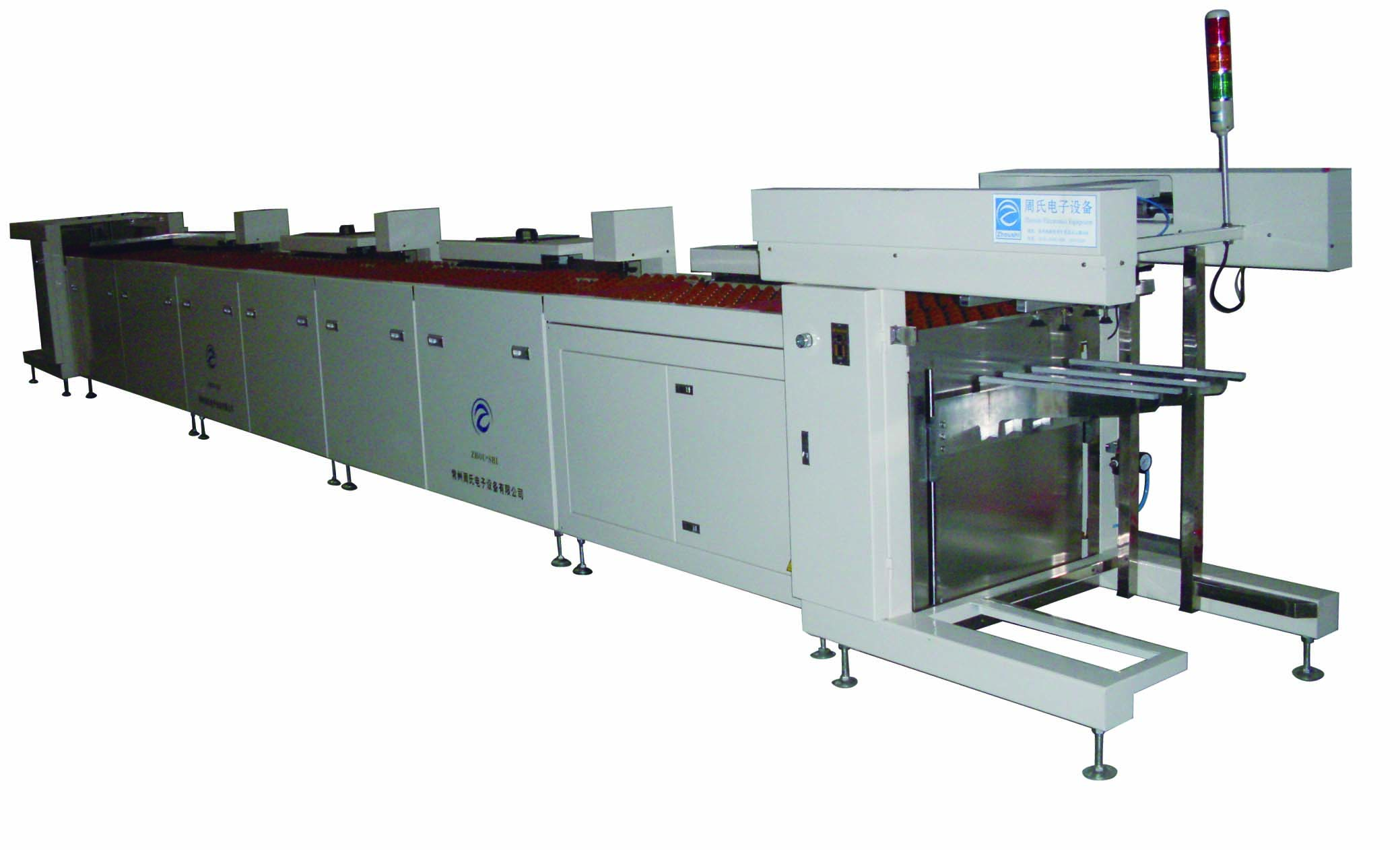

Product description: The milling machine uses polycrystalline diamond milling cutter, fine milling quality assurance, together with the change to automatic investment board and received board mechanism, once the material that is able to complete the four sides of the grinding, greatly improving production efficiency. Product Features: 1, single and double panel, inner plate, a pressure …
